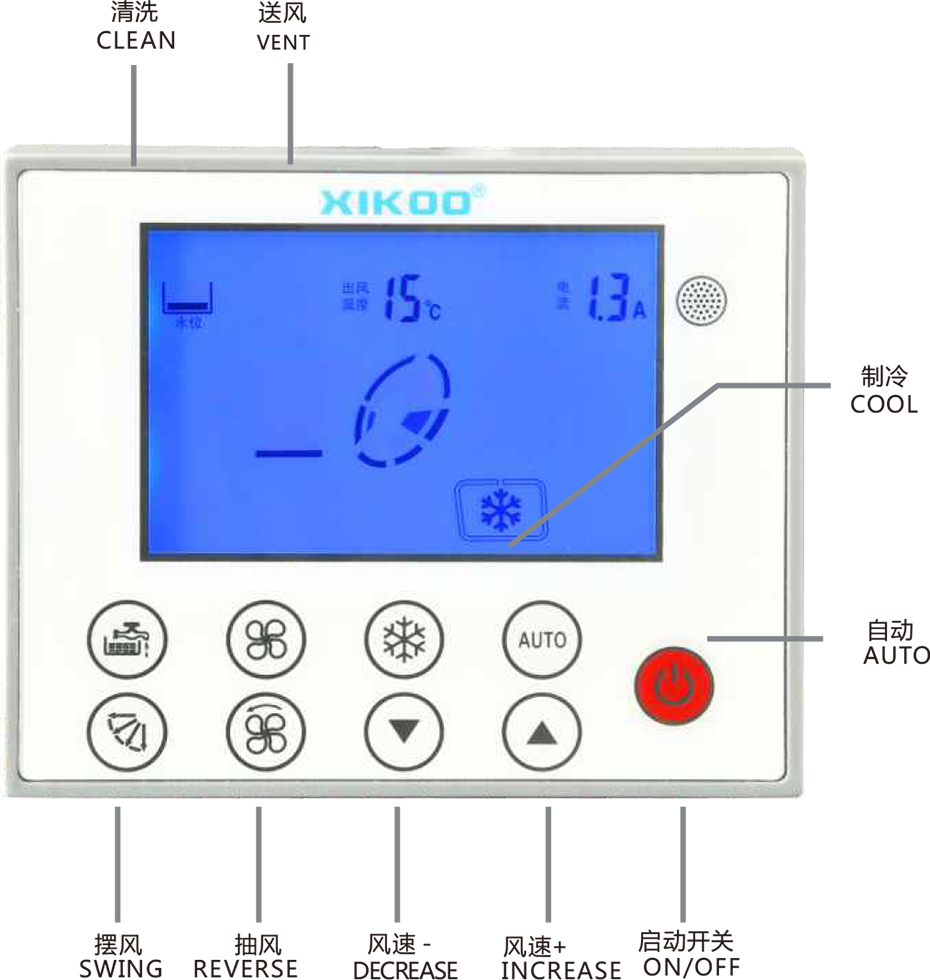

空调启动关闭控制。 Connect the power, press ON/OFF, the item will work in Wind state. If you press the button again, it will be in "off" mode, fan motor, LCD screen are to stop working
自动 AUTO
根据设定的温度Hset和室内湿度HO的差值控制马达输出速 度和水泵开关。 "AUTO"mode:ording to the difference between the setti ngtemperature (Tset) and in door temperature (TO), then adjust the outlet speed of motor (D); ording to the d iff ere nee betwee n the setti ng humidity (Hset) and the in door humidity(HO),th en control the ON/OFF of water pump.
制冷 COOL
制冷设置通过启动水循环进行制冷. Press COOL, it will be in COOL mode, and COOL display lights, after 30 seco nds, fan motor will start worki ng .If you press this butt on aga in ,the water pump will be off.
摆风 WING
调节左右摆风控制 vertical louvers are moving automatically from left to right.
送风 VENT
正向启动风机 Positive starting up the fan.
抽风 REVERSE
反向启动风机 Reverse starting up the fan.
材料介绍MATERIAL INTRODUCTION- 星科实业 -
配 件essories
材料/Material
配件essories
材料/Material
外壳 Body case
PP注塑材料 PP Material
水帘 Cooling Pads
5090林帘佳木斯原纸+芬兰太尔胶水 5090# cooling padsjiamusi Pulp + Finland Dynea Glue.
风叶 Fan Blades
尼龙和玻璃纤维材料 nylon and glass fiber material
水泵 Water pump
陶瓷轴潜水泵 Ceramic shaft submersible pump
电机支架 Motor Bracket
钢板材料,受力好,防锈,防腐 Steel plate material, Good loadbearing, Anti-rust, Anti<orrosi
